产品介绍
产品名称: 接口模块
型号系列:AutoMet 580 & 136 MultiMet
品牌:metone
产地:美国
价格:**终成交价格需联系客服
AutoMet 580 & 136 MultiMet 接口模块
AUTOMET 580
我们的 AutoMet 580 采集平台是一个完整的数据记录器，带有前面板显示屏，可以接受来自任何 Met One 标准传感器、AutoMet 传感器和 Met One 数字串行传感器的输入。AutoMet 输出具有以太网和 MODBUS 连接性，与我们的 COMET、Air Plus 和 WeatherView 软件兼容。
与往常一样，Met One Instruments, Inc. 为您的基于 AutoMet 的气象站免费提供预接线、预编程和预测试，以使您的站点更快地启动和运行。
136 MULTIMET 接口模块
Met One Instruments 136 型 MultiMet 接口模块旨在轻松快速地连接到我们的任何气象传感器1 和选定的微粒空气传感器。取代我们的 131 系列 MultiMet 转换器和我们传统的通用接口模块 (UIM)，136 以模拟和数字格式输出数据。
136 具有 12 个独立的 16 位电压输出通道。这使得 136 可以作为一个强大的、用户可配置的信号转换器来直接连接到各种其他记录系统、数据记录器、PLC 和 DCS。串行输出格式包括 USB、RS-232 或 RS-485 串行 (ASCII)、MODBUS RTU 和 UIM 串行报告字符串 (ASCII)。模拟输出包括 0-1、0-2.5、0-5 VDC 和 4-20 mA 隔离电流回路，带有我们可选的 DIN 导轨安装、单通道变送器、P/N 510695。
用户可配置的统计计算可用于：平均值；**、**和温差；标准偏差；阵风和露点。还有两个报警输出可用作单个报警或组合在 AND 或 OR 逻辑输出中。
单独购买的通信选项包括：网络接口、蜂窝数据调制解调器和无线电。云数据服务也可用。
通过在 PC 或笔记本电脑上运行我们的 WeatherView 软件，可以显示实时数据。WeatherView 并且还提供了一个网页兼容的显示来查看当前的天气数据值。
AutoMet 580 & 136 MultiMet 接口模块特征
AUTOMET 580
强大的连接性：以太网、MODBUS、12 个模拟输出、USB、RS-232C、RS-485
统计计算：Avg、min、max、delta、STD DEV、露点等
匹配的总辐射表输入：用于阵列测量的全局水平和平面
PT-100 铂温度输入：用于超精确和宽范围的温度测量。
136 MULTIMET 接口模块
8 个模拟输入/12 个模拟输出
3 个 Met One 数字传感器输入 - MET 或 AIR 传感器
数据记录
多个串行输出
MODBUS RTU
16 位分辨率
完全可现场配置/可修改
经济
AutoMet 580 & 136 MultiMet 接口模块应用：
环境监测
采矿和矿石加工
中文内容来自机器翻译，内容仅供参考，实际内容可参考原厂介绍或以合同为准。
英文原文：
AutoMet 580 & 136 MultiMet Interface Module
AUTOMET 580

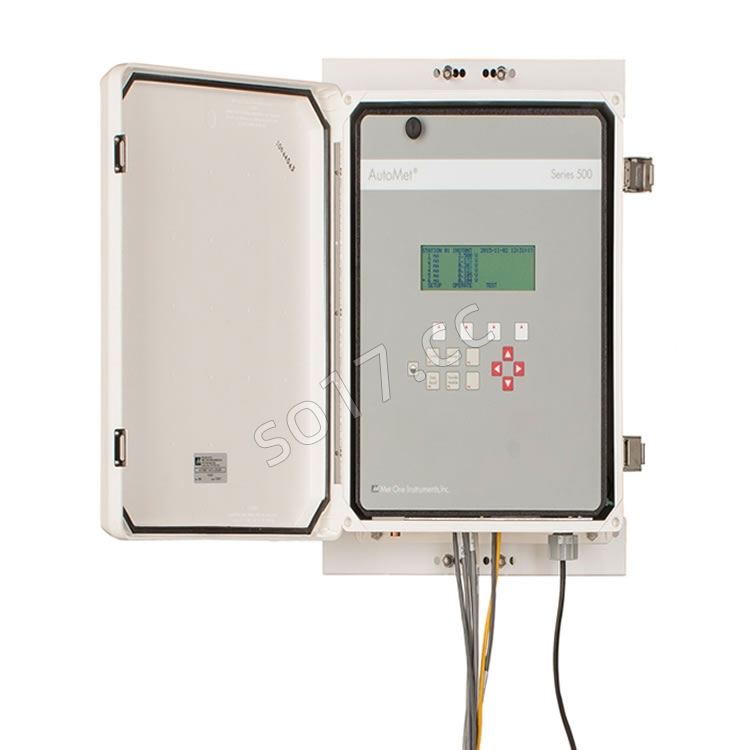

Our AutoMet 580 Collection Platform is a complete data logger with front panel display which accepts input from any Met One standard sensors, AutoMet sensors and Met One digital serial sensors. Featuring Ethernet and MODBUS connectivity, the AutoMet output is compatible with our COMET, Air Plus and WeatherView Software.
As always, Met One Instruments, Inc. provides your AutoMet based weather stations pre-wired, preprogrammed and pre-tested at no extra charge to get your site up and running faster.
136 MULTIMET INTERFACE MODULE
Met One Instruments Model 136 MultiMet Interface Module is designed to be easily and quickly connected to any of our meteorological sensors1 and selected particulate AIR sensors. Replacing our 131 Series MultiMet Translators and our legacy Universal Interface module (UIM), the 136 outputs data in both analog and digital formats.
The 136 features 12 independent, 16-Bit, voltage output channels. This allows the 136 to function as a powerful, user-configurable signal translator for direct connection to a variety of other recording systems, data loggers, PLC’s and DCS’s. Serial output formats include USB, RS-232 or RS-485 serial (ASCII), MODBUS RTU and UIM serial report string (ASCII). Analog outputs include 0-1, 0-2.5, 0-5 VDC, and 4-20 mA isolated current loop with our optional DIN rail mount, single channel transmitters, P/N 510695.
User configurable statistical calculations are available for: Averages; Min, Max and Delta Temperature; Standard Deviation; Gusts and Dew Point. There are also two alarm outputs that can be used as either single alarm or combined in a AND or OR logic output.
Communication options, purchased separately, include: network interface, cellular data modem, and radio. Cloud data service is also available.
Real Time Data can be displayed by running our WeatherView Software on a PC or Laptop. WeatherView and also provide a Web Page compatible display for viewing current weather data values.
FEATURES
AUTOMET 580
Powerful connectivity: Ethernet, MODBUS, 12 analog outputs, USB, RS-232C, RS-485
Statistical calculations: Avg, min, max, delta, STD DEV, dewpoint & more
Matched pyranometer inputs: For global horizontal & plane of array measurements
PT-100 platinum temperature inputs: For ultra-accurate and wide range temperature measurements.
136 MULTIMET INTERFACE MODULE
8 Analog Inputs / 12 Analog Outputs
3 Met One Digital Sensor Inputs – MET or AIR Sensors
Data logging
Multiple Serial Outputs
MODBUS RTU
16-BIT Resolution
Fully Field Configurable / Modifiable
Economical
APPLICATIONS:
Ambient Monitoring
Mining & Ore Processing
